Error Code list glory gnh 700/710

Error code

E 10   ( holder closing error)
E 11   ( holder opening error)
E 40   ( shutter closing error )
E 41    ( shutter opening error)
E 60   ( unexpected quit error)
E 12   ( holder sensor error )
E 13  ( holder adjustmen error)
E 20  ( pressure decreasing error)
E 32   ( rotor motor rotation error)
E 33 ( positioning error )
E 42 ( shutter sensor error )
E 50  ( rotor connection error ).

E 51  ( holder connection error)
E 52  ( rotor motor error )
E 53  ( holder motor error)
E 80  ( Rom error )
E 81  ( RAm error )

Untuk E 10 sampai E 60
Check parts indicated by the error code and make sure there is no jamming notes or other objects.
Press the Reset button

Untuk E 12 sampai E 81 . Tekan tombol resset . Jika belum ilang error tersebut matikan mesin tunggu beberapa menit kemudian nyalakan kembali.
Jika belum berhasil juga kemungkinan ada suku cadang yg harus di ganti atau di stell ulanng


E 251  ( Rotor error / Prs error )

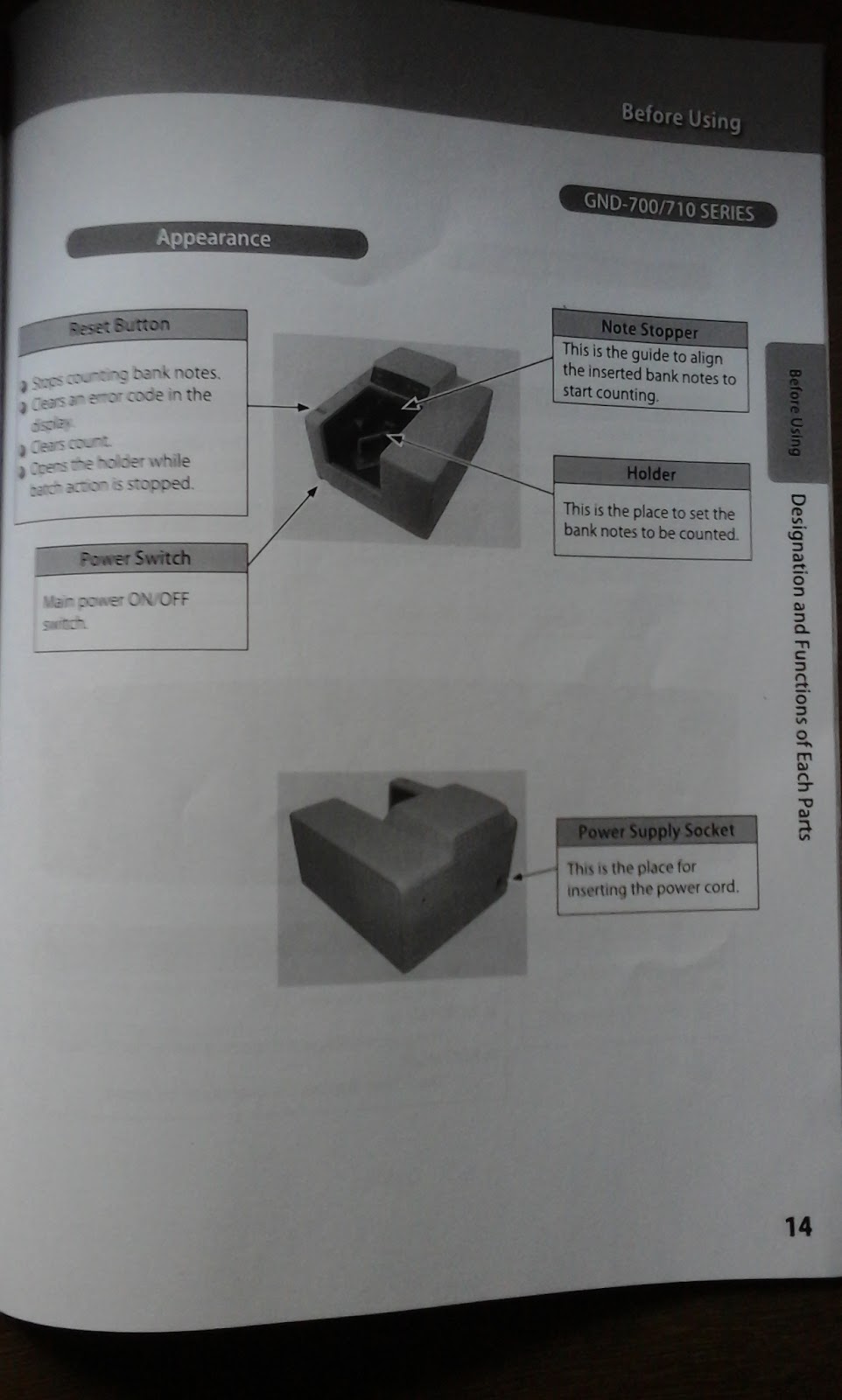

Note Stopper

_________________

(This is the guide to align the inserted bank notes to star counting)

Holder

______________________

(This is the place to set the bank notes to be counted)

Reset Button

_____________________________

(Stops counting bank notes)

(Clear an error code in the display)

(Clear Count)

(Open the holder while bach action is stopped)

Power Switch

________________________________

(Main power On/Of switch)

Power Supply Socket
_______________________
(This is the place for inserting the power cord)

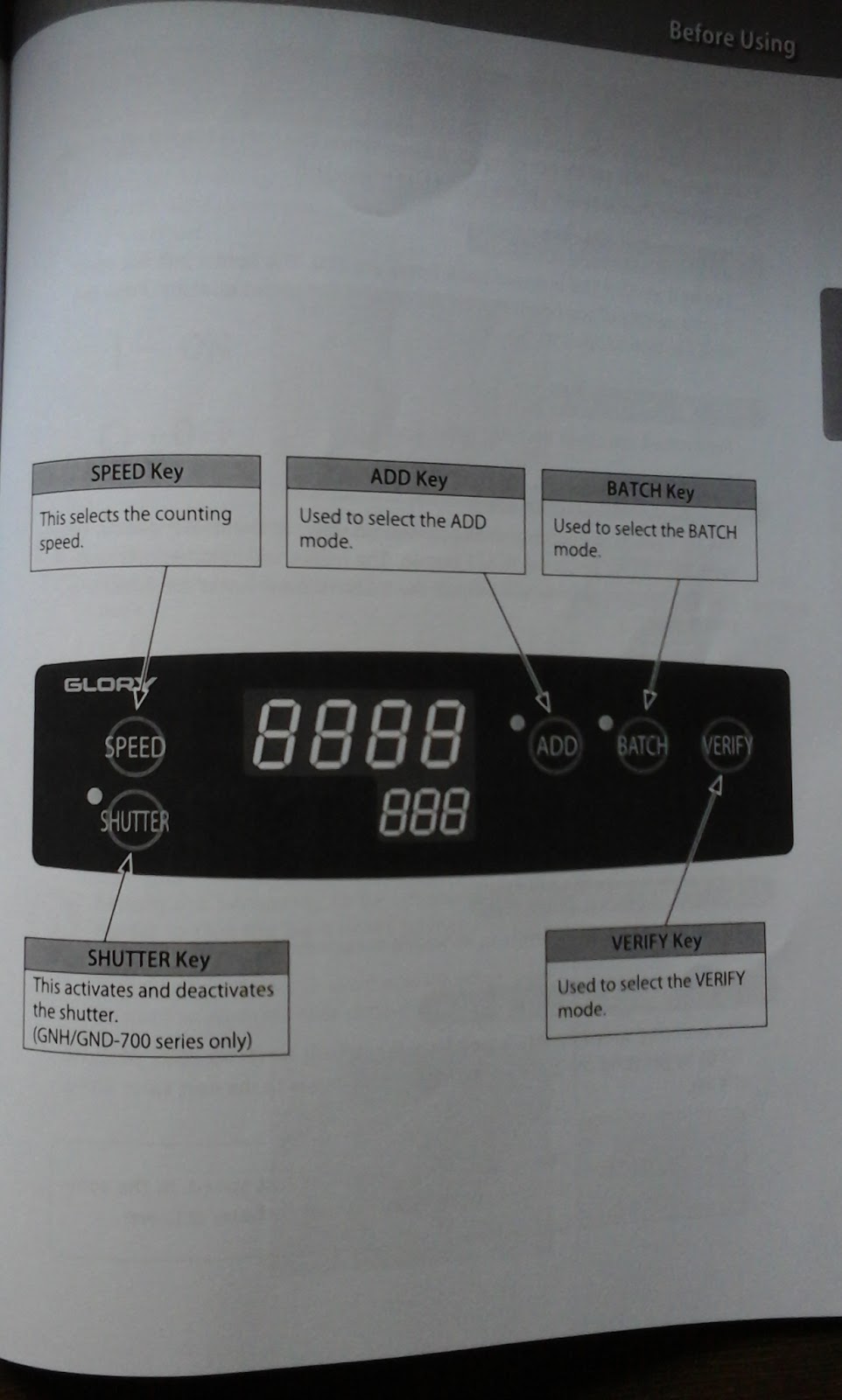

Operation Panel

Number Display

____________________

(In Verifl Mode : the lamp will blink if the counted quantity is differ from the preset quantity)

(In Counting Mode : the screen displays the note counting result)

(In Bacth Mode : the lamp will blink if the counted quantity is under the preset quantity)

(In Add Mode : the screen display the cumulative total)

Speed Key

__________________

(This Selects the counting speed)

Shutter Key

______________________

(This activates and deactivates the shutter)

Add Key

_________________________

(Used to select the add Mode)

Batch Key

________________________

(Used to select the bacth moded)

___Verify Key___

_________________

(Used to select the Verify Mode)

EXPALANATIONS OF EACH FUNCTION

Function mode is set by pressing each keys. When the unit is turned on,it sets to the mode that was set before it was last turned off

Verify Mode

The unit Verifies the inserted bank notes are 100. The holder will not open if the quantity of the bank notes is differ from the preset quantity. Press the Resset button to open the holder

Counting Mode

The product will count the bank notes inserted

Batch Mode

The unit will stop counting at the preset quantity, as the Holder closed.to open the Holder, press the Resset button.the holder will automatically open and the number display will blink if the inserted bank notes are under the preset quantity.

How to set the preset quantity

The preset quantity can be chosen from the default set (100,10,20,25,50,and 75 ) by pressing the bacth key, the default quantity changes to the next value within the list.To set the quantiy other than the default set, hold the Bacth key for 2 seconds. then press the Bacth key until the wanted value is shown in the display. The unit will go back to the default set if you do not operate for 2 seconds.

Add Mode

The unit displays the quantity to be added in each mode.

To change counting speed

The counting speed can be chosen from the default set ( 1500,2000,2400 and 1000 ) by pressing the Speed Key, the speed changes to the next value within the list
